Led Panel Led Panel
Ceiling

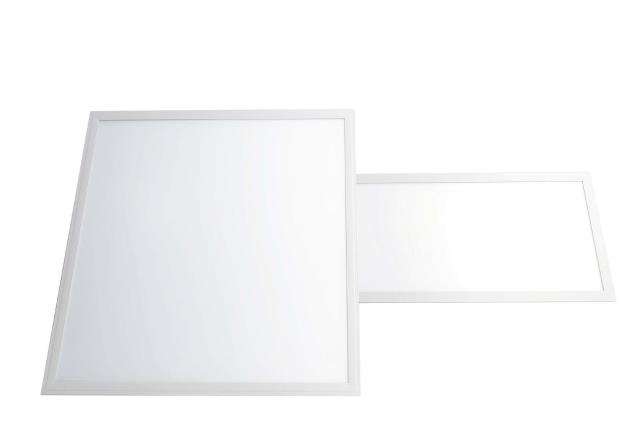

LYNX 60X60

LYNX 60X60

Warranty
Protection from external agents
Impact protection
Flicker free
RG
Bianco White RAL 9003

Edge-lit led panel UGR<19 flicker-free for recessed, surface, and suspension mounting by means of the relevant accessories. Housing in anodised white painted aluminium, and opal diffuser in microprismatic PMMA with very high transmittance, uniform luminance and anti-glare surface. Driver IP20 included and connected to the led panel via a bipolar connector.

LYNX 60X60
LYNX 60X60
Color Size Power Power supply Luminaire Output Light source Packing Dali Insulation class Cod
White RAL 9003 595x595x9 mm 36 W 220-240V 50/60Hz 3893 lm Led 3000 K 1 DALI II 400-040617DG
White RAL 9003 595x595x9 mm 36 W 220-240V 50/60Hz 4186 lm Led 4000 K 1 DALI II 400-040617FG
White RAL 9003 595x595x9 mm 36 W 220-240V 50/60Hz 4186 lm Led 4000 K 1   II 400-0406182G
White RAL 9003 595x595x9 mm 36 W 220-240V 50/60Hz 3893 lm Led 3000 K 1   II 400-0406184G
Bianco 595x595x10.5 mm 40W 77   Led 4000 K 1     820-0401182G
Bianco 595x595x10.5 mm 40W 77   Led 3000 K 1     820-0401184G
Bianco 595x595x10.5 mm 45W 77   Led 4000 K 1     820-0401282G
Bianco 595x595x10.5 mm 45W 77   Led 3000 K 1     820-0401284G

Pairings

    Accessories

      Similar

        Download

        Instructions.PDF

        Istruzioni.PDF

        Lynx 60x60.DWG

        Lynx 60x60.DXF

        Lynx.RAR

        UE-LYNX-ENG.PDF

        UE-LYNX-ITA.PDF
